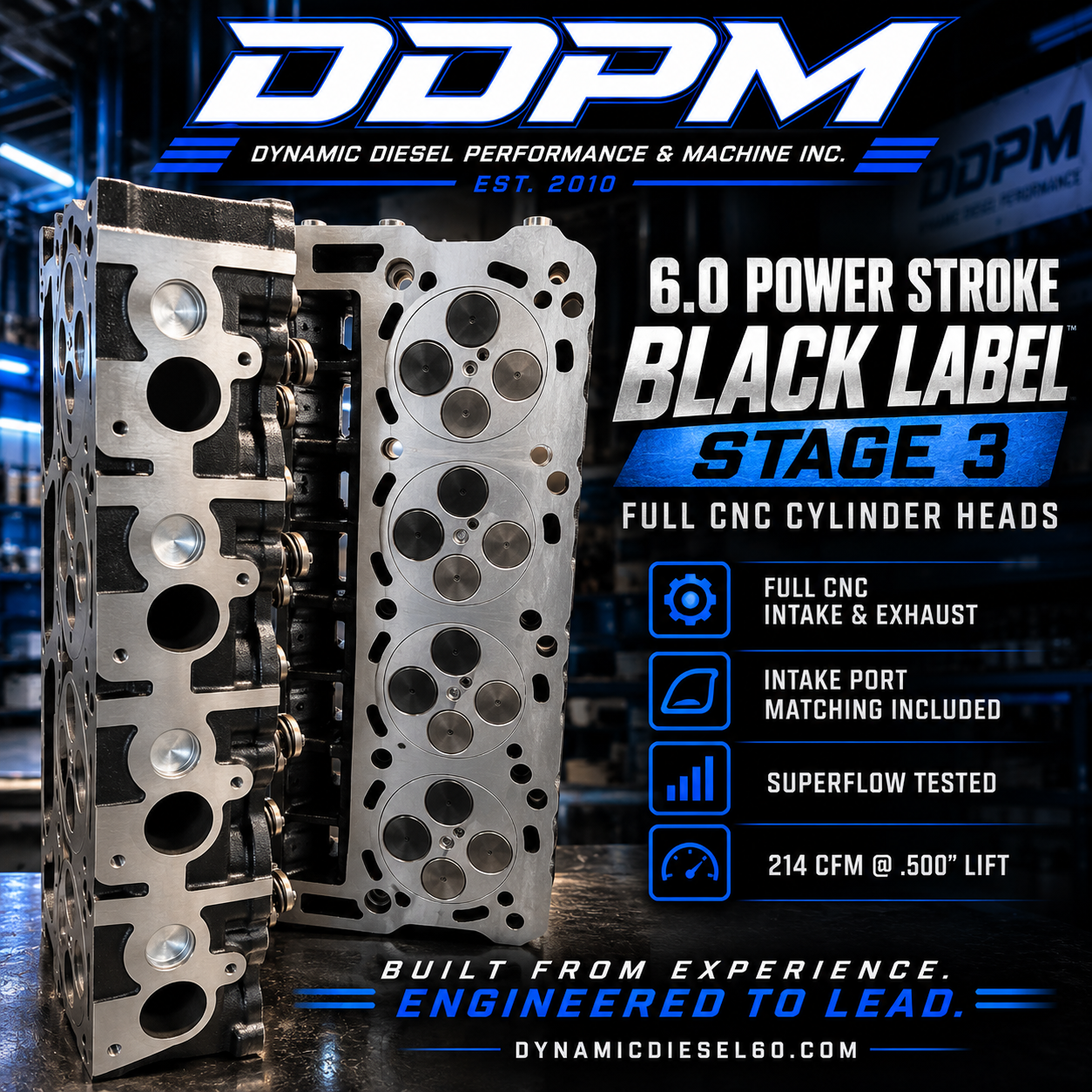

6.0 Power Stroke Black Labelâ„¢ Stage 3 Cylinder Heads
The Evolution of DDPM Cylinder Head Development
Some cylinder heads are designed to sell airflow numbers.
Black Labelâ„¢ was designed to win.
The DDPM Black Labelâ„¢ Stage 3 program represents the highest level of 6.0 Power Stroke cylinder head development offered by DDPM and reflects years of airflow refinement, CNC development, competition experience, and real-world performance testing.
This is not a stock replacement cylinder head.
This is not a mild performance upgrade.
Black Labelâ„¢ is DDPM’s flagship cylinder head package engineered for customers seeking maximum airflow, premium CNC development, and proven performance capability.
Built around full CNC intake and exhaust development, matched airflow geometry, and intake manifold port matching, Black Labelâ„¢ delivers a complete airflow system designed to support serious horsepower while maintaining the airflow efficiency and runner behavior DDPM believes creates real performance.
This is airflow engineered with purpose.
This is Black Labelâ„¢.
Why Choose Black Labelâ„¢?
The Black Labelâ„¢ story did not begin overnight.
Its roots trace back to years of real-world testing and refinement dating back to 2014 and beyond.
Long before airflow marketing became common, DDPM focused on developing cylinder heads built around actual performance results.
Over the years, DDPM cylinder head and valvetrain development has supported some of the most recognized high-performance 6.0 Power Stroke combinations in the industry.
These cylinder heads helped support milestone achievements on the 6.0 platform, including:
- First 1,500 HP 6.0 Power Stroke
- First 1,900 HP 6.0 Power Stroke
Competition experience, customer feedback, and continuous airflow refinement evolved the program into what Black Labelâ„¢ represents today.
At DDPM, we believe cylinder heads should prove themselves where it matters:
- On the dyno
- At the track
- Under real load
Not just on a flow bench.

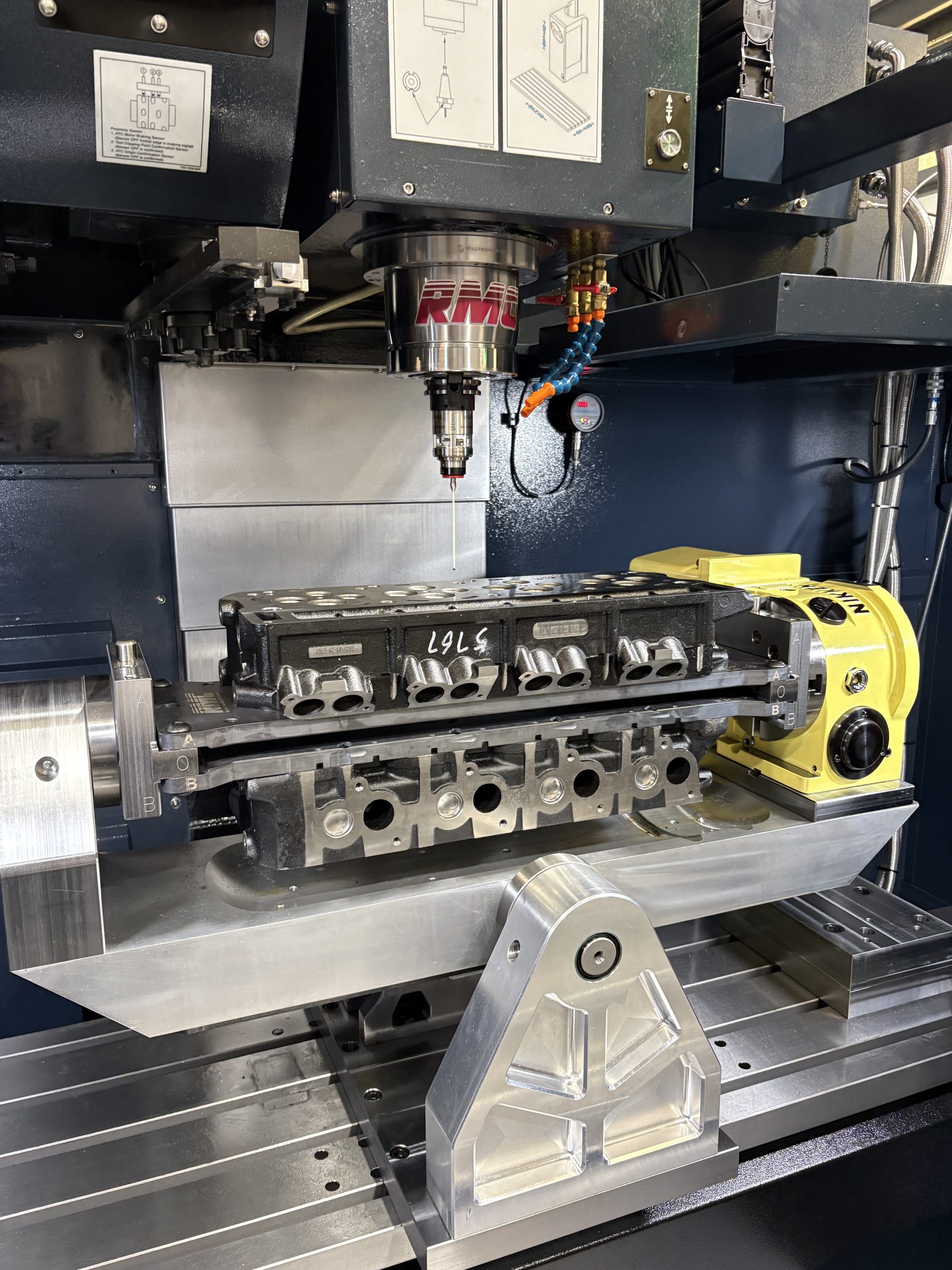

Full CNC Intake & Exhaust Development
Maximum performance requires more than simply enlarging a port.
True airflow development requires:
- Bowl development
- Short-turn refinement
- Runner transition control
- Exhaust development
- Chamber efficiency
- Intake alignment
- Airflow balance
Black Labelâ„¢ was developed to maximize the potential of the OEM casting through a complete CNC airflow package.
Unlike basic port work or oversized race-port programs, Black Labelâ„¢ includes:
- Full CNC intake development
- Full CNC exhaust development
- Intake port matching
- Custom matched intake gaskets
- Airflow balancing throughout the lift curve
- Repeatable CNC geometry
Intake Development
- Full CNC intake port refinement
- Bowl development
- Short-turn refinement
- Transition optimization
- Airflow balancing
- Port entrance refinement
Exhaust Development
- Full CNC exhaust development
- Improved evacuation
- Improved transition geometry
- Balanced flow characteristics
- Enhanced high-lift performance
This creates a cylinder head designed around usable airflow throughout the lift range—not simply peak numbers.

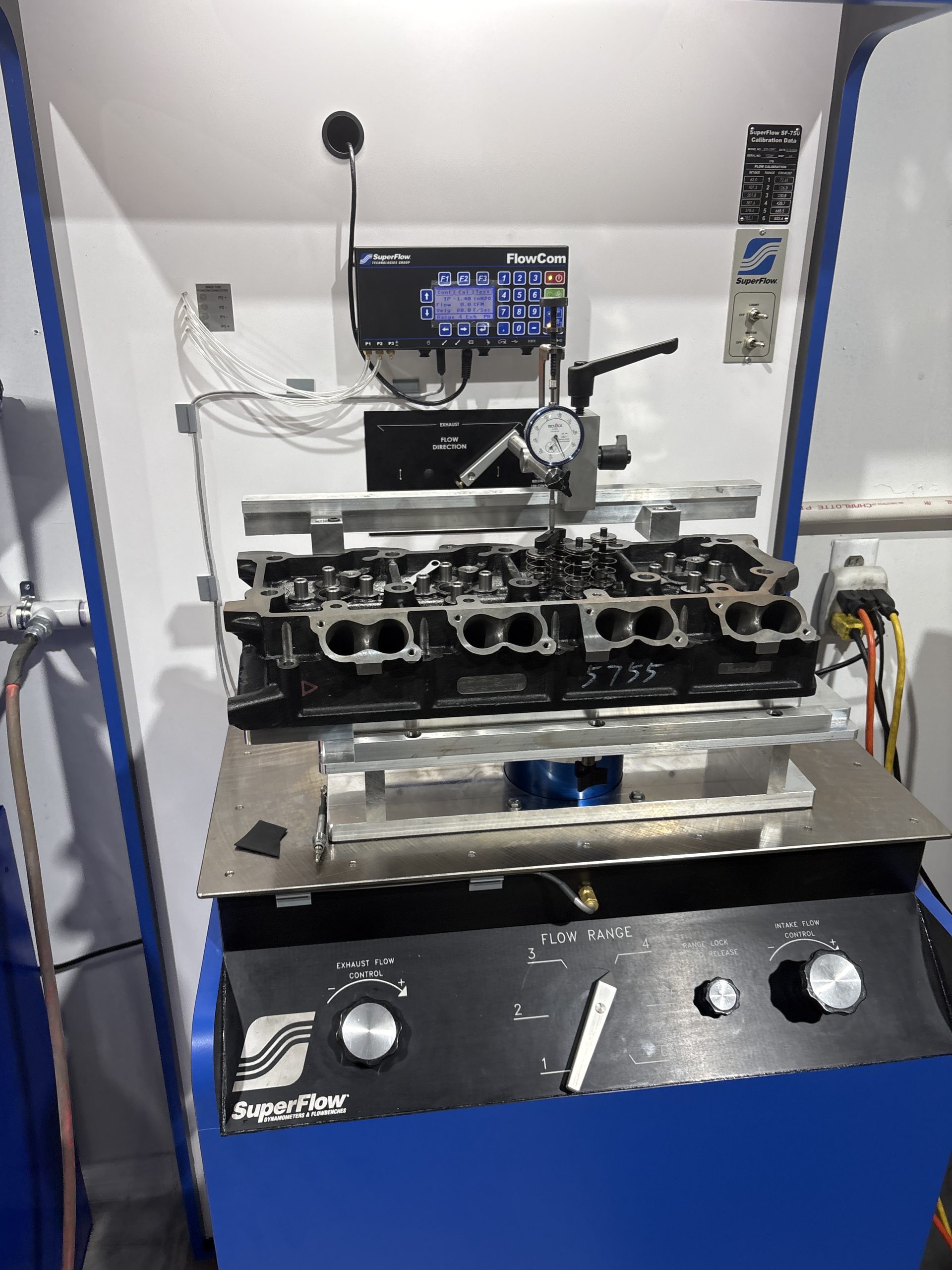

Real Flow-Tested Performance
SuperFlow Tested | Corrected to 28″ Hâ‚‚O
At DDPM, airflow claims are supported by measured testing.
Black Labelâ„¢ Stage 3 was validated using controlled airflow testing corrected to 28″ Hâ‚‚O.

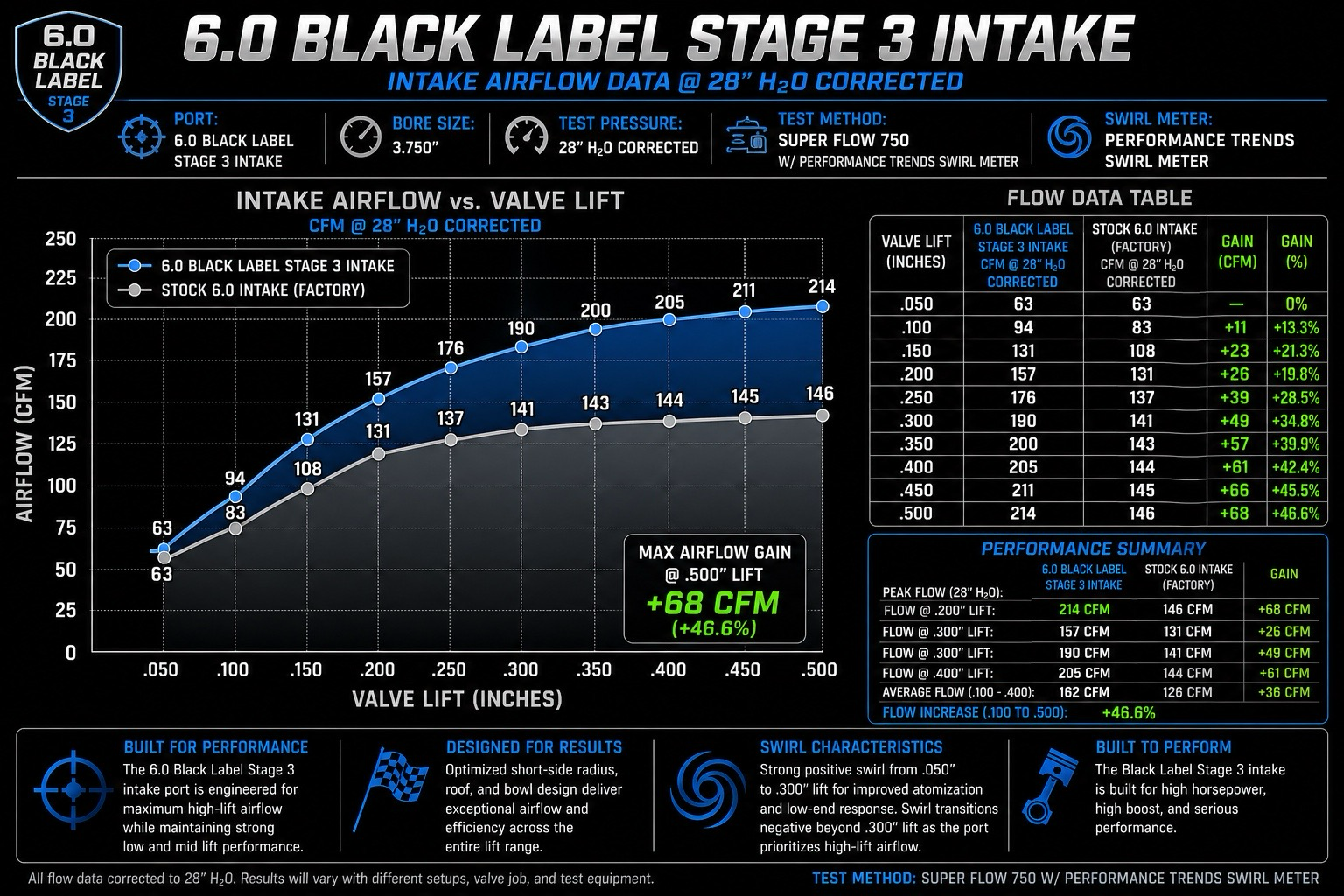

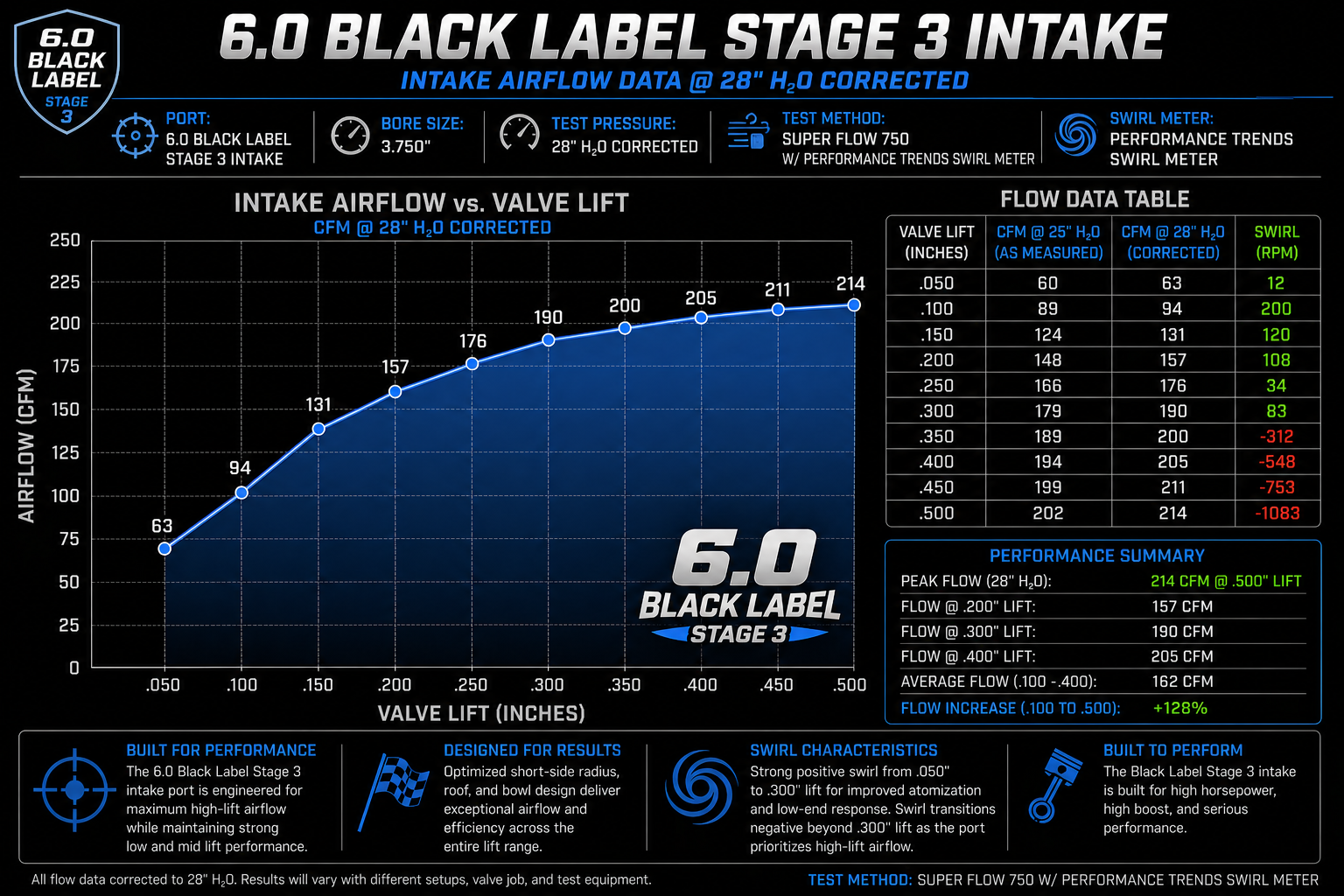

Intake Flow @ 28″ Hâ‚‚O
| Valve Lift | Airflow |
|---|---|
| .050 | 63 CFM |
| .100 | 94 CFM |
| .150 | 131 CFM |
| .200 | 157 CFM |
| .250 | 176 CFM |
| .300 | 190 CFM |
| .350 | 200 CFM |
| .400 | 205 CFM |
| .450 | 211 CFM |
| .500 | 214 CFM |

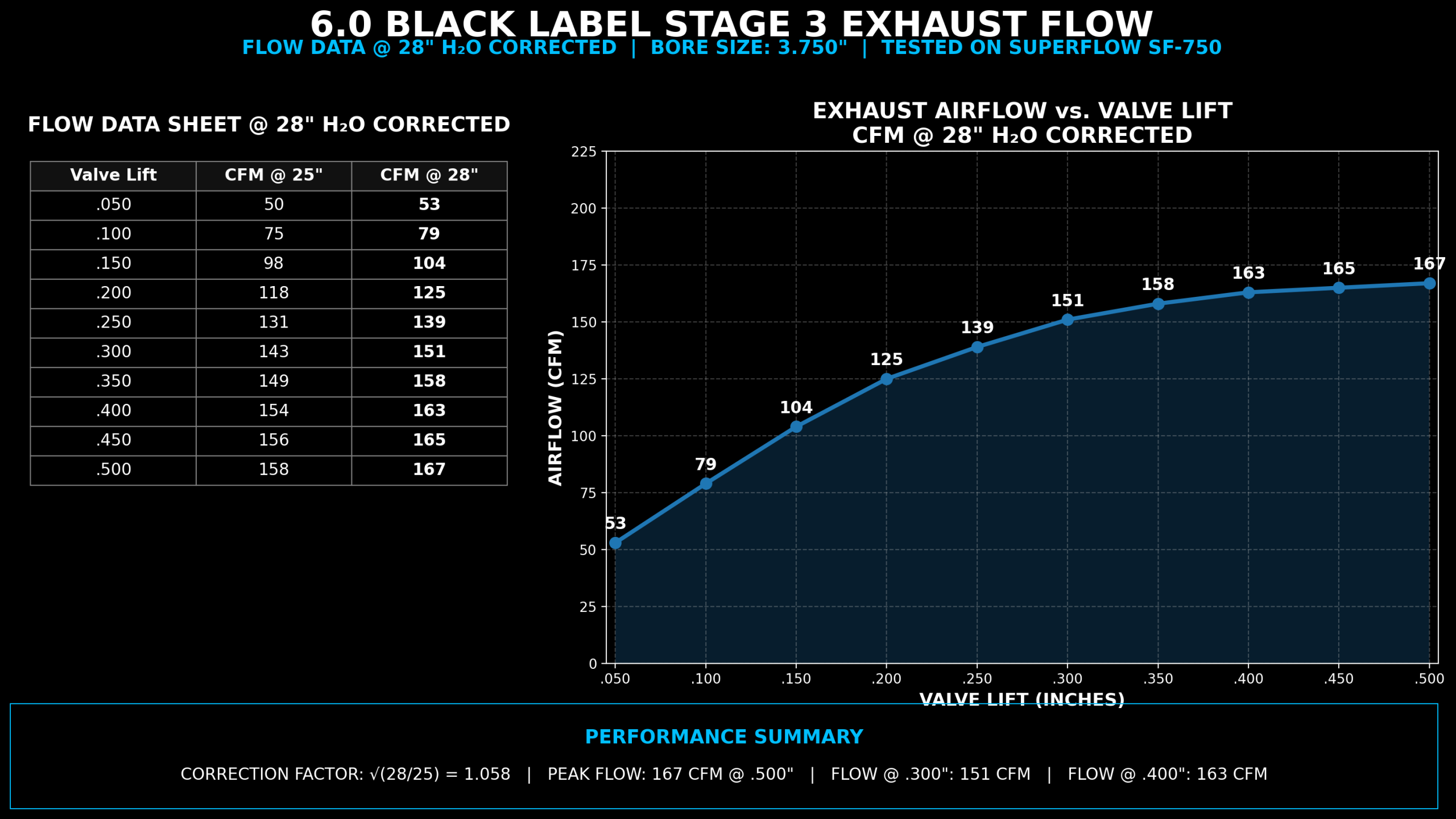

Exhaust Flow @ 28″ Hâ‚‚O
| Valve Lift | Airflow |
|---|---|
| .050 | 53 CFM |
| .100 | 79 CFM |
| .150 | 104 CFM |
| .200 | 125 CFM |
| .250 | 139 CFM |
| .300 | 151 CFM |
| .350 | 158 CFM |
| .400 | 163 CFM |
| .450 | 165 CFM |
| .500 | 167 CFM |
Peak airflow matters.
But what makes Black Labelâ„¢ unique is the complete airflow package:
- Strong low-lift airflow
- Excellent mid-lift performance
- Balanced intake-to-exhaust relationship
- Smooth airflow curve
- Exceptional high-lift capability
This is airflow engineered to perform throughout the operating range.

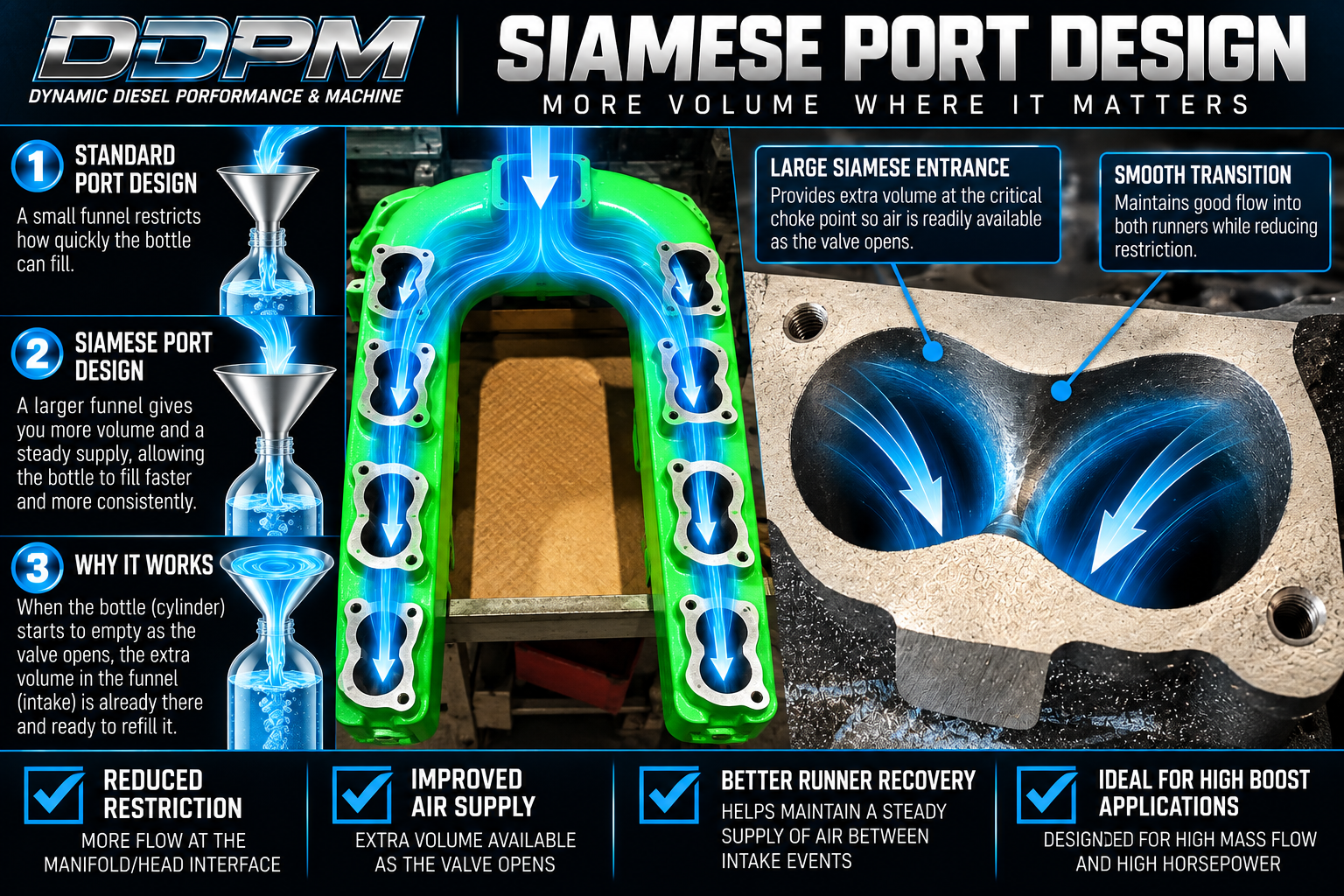

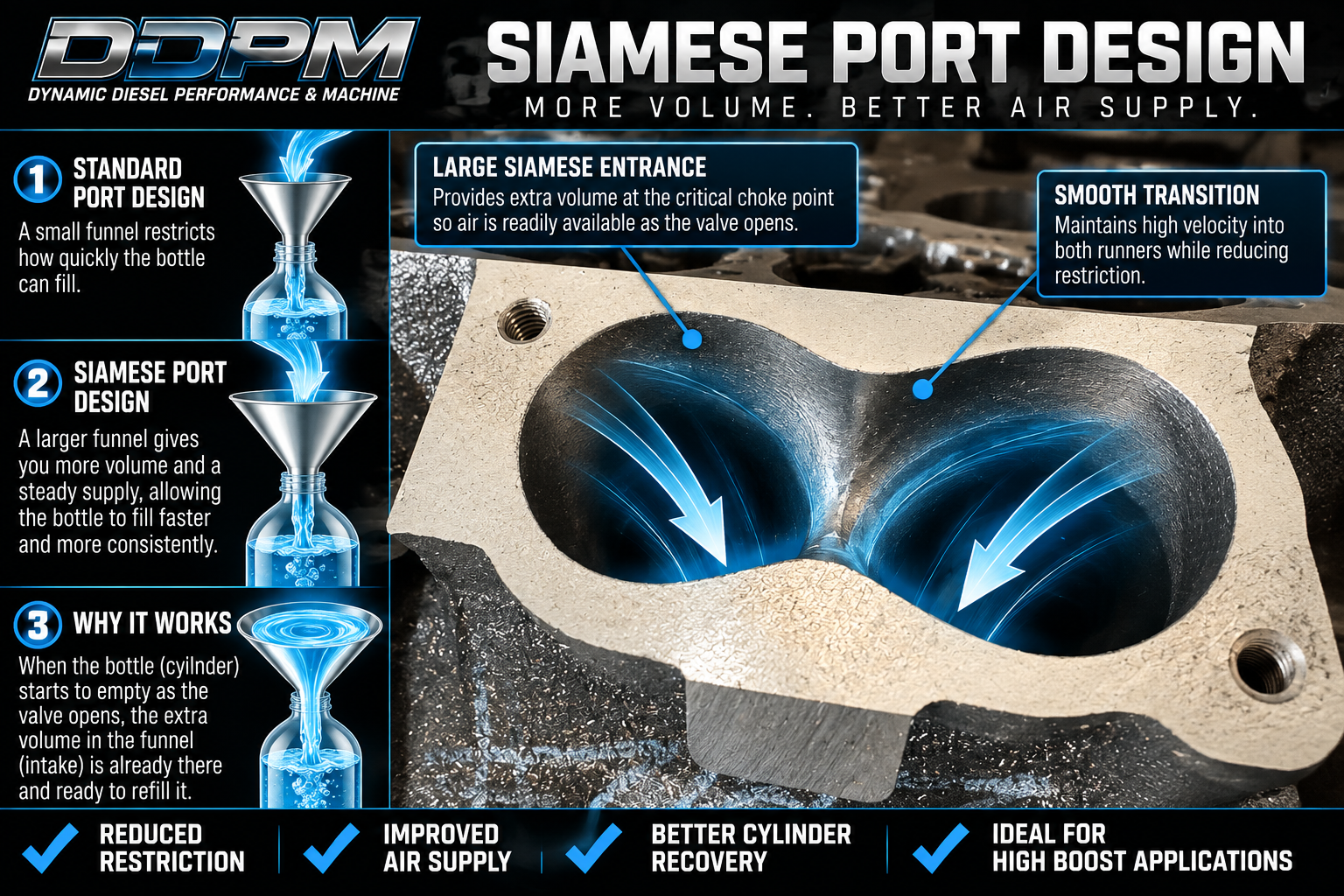

Intake Port Matching Included
Black Labelâ„¢ is designed as a complete airflow package.
Unlike partial port programs or optional manifold work, intake port matching is included with every Black Labelâ„¢ package.
Included Features
- Port matched intake manifold
- Matched airflow transition
- Reduced mismatch
- Improved airflow continuity
- Custom matched intake gaskets included
This creates a complete airflow system—not simply a ported cylinder head.
Customer-Supplied Intake Policy
Customers may supply their own intake manifold for Black Labelâ„¢ intake matching.
Customer-supplied intakes must arrive cleaned and free of:
- Oil
- Coolant
- Carbon buildup
- Debris
DDPM is not responsible for cleaning customer-supplied manifolds before or after machining.
Dirty or contaminated manifolds may delay processing or be rejected prior to machining.
New Intake Manifold Option Available
For customers seeking the simplest solution, DDPM offers new intake manifold options for Black Labelâ„¢ port matching.
Benefits include:
- Simplified installation
- Reduced downtime
- No cleaning concerns
- Fully matched airflow package
Ask DDPM about available intake manifold options.
Reliability & Engineering
Performance means nothing if durability is compromised.
That philosophy shaped Black Labelâ„¢ from the beginning.
Port work must balance airflow with:
- Casting integrity
- Seat support
- Material retention
- Heat management
- Consistency
Black Labelâ„¢ utilizes repeatable CNC development designed around both airflow and durability.
This is serious airflow development built for serious trucks.
Ideal Applications
Black Labelâ„¢ was engineered for customers seeking maximum airflow and premium cylinder head capability.
Ideal applications include:
- Competition builds
- High-performance street trucks
- Compound turbo systems
- Large injector combinations
- Premium engine builds
- Maximum horsepower applications
- Customers seeking DDPM’s flagship cylinder head package
Technical Specifications
DDPM 6.0 Black Labelâ„¢ Stage 3
- Full CNC intake development
- Full CNC exhaust development
- Intake port matching included
- Custom intake gaskets included
- SuperFlow tested
- 28″ corrected airflow data
- Vacuum tested
- Precision machined
- O-ring options available
- Premium airflow package
Frequently Asked Questions
Is Black Labelâ„¢ fully ported?
Yes.
Black Labelâ„¢ represents DDPM’s full Stage 3 CNC airflow package.
Is intake matching included?
Yes.
Every Black Labelâ„¢ package includes intake port matching and matched intake gaskets.
Can I send my own intake?
Yes.
Customer-supplied intakes are accepted but must arrive cleaned and are the customer’s responsibility before and after machining.
Is Black Labelâ„¢ good for street trucks?
Yes.
Black Labelâ„¢ can be used on street and performance builds, though it was engineered primarily for customers seeking maximum airflow and premium performance capability.
The DDPM Black Labelâ„¢ Difference
Not every cylinder head earns a reputation.
Some are simply sold.
Black Labelâ„¢ was developed through years of refinement, testing, and real-world performance.
This is DDPM’s flagship 6.0 Power Stroke cylinder head program.
Maximum airflow.
Complete airflow package.
Intake matched.
Proven performance.
DDPM engineered.
Black Labelâ„¢ Stage 3
Built from experience. Engineered to lead.
Design Protection Notice
This is a proprietary cylinder head design developed through years of testing and real-world application.
Patent protection is in place. All machining strategies and design elements are proprietary.
