6.7 Powerstroke Fuel Contamination Kit (2020–2022) – No Pump
This 6.7 Powerstroke fuel contamination kit is designed for 2020–2022 Ford Super Duty trucks and includes all essential components needed to restore the high-pressure fuel system after contamination—excluding the fuel pump.
Fuel system contamination can occur from DEF misfueling, poor fuel quality, or debris. As a result, injectors, rails, and fuel lines can become damaged. This kit replaces all critical components affected by contamination, helping prevent repeat failures and additional damage to your fuel system.
6.7 Powerstroke Fuel Contamination Kit – Complete Fuel System Repair
If your truck has experienced fuel system failure or contamination, replacing only select components can lead to continued issues. Therefore, a complete system repair is recommended to prevent:
- Recurring injector failure
- Damage to new fuel system components
- Continued fuel pressure issues
- Premature failure of replacement parts
This kit provides a complete solution to properly restore your fuel system and avoid costly repeat repairs.
6.7 Powerstroke Fuel Contamination Kit Features & Benefits
- Complete fuel system solution (excluding pump)
- 100% OE or OE-equivalent validated components
- Each component is end-of-line tested at multiple inspection points
- Designed for proper fit, performance, and long-term reliability
- Assembled in the USA in an ISO 9001:2015 certified facility
- Backed by a 3-year unlimited mileage warranty

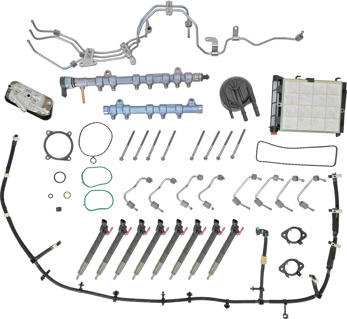

What’s Included in This 6.7 Powerstroke Fuel Contamination Kit
This kit includes all major components required to restore your fuel system:
- 4x Bosch OE Injectors – OE# LC3Z9H529A
- 4x Bosch OE Injectors – OE# LC3Z9H529B
- 4x High Pressure Injector Lines – OE# LC3Z9A337B
- 4x High Pressure Injector Lines – OE# LC3Z9A337A
- 1x Pump to Rail Line – OE# LC3Z9E964B
- 1x Pump to Rail Line – OE# LC3Z9A337C
- 1x Pump to Rail Line – OE# LC3Z9A337D
- 1x Pump to Rail Line – OE# LC3Z9A337E
- 1x Injector Return Line – OE# LC3Z9A564B
- 1x Pump Supply Return Line – OE# LC3Z9J280A
- 1x Right-Side High-Pressure Rail – OE# LC3Z9D280C
- 1x Left-Side High-Pressure Rail – OE# LC3Z9D280D
- 1x Fuel Filter Kit – OE# PC3Z9N184C (FD4647)
- 1x Intake Flap Gasket – OE# LC3Z9E936A
- 2x Upper Intake Seals – OE# LC3Z9439B
- 1x Vacuum Pump Gasket – OE# HC3Z2A572A
- 1x Coolant Pipe O-ring – OE# BC3Z8527N
- 1x Turbo Coolant Seal – OE# HL3Z6N652A
- 1x Oil Fill O-ring – OE# W716324S300
- 2x EGR Tube Gaskets – OE# BC3Z9E464F
- 1x Fuel Cooler – OE# LC3Z9N103A
(All components are OE or OE-equivalent replacements.)
Vehicle Fitment
Fits 2020–2022 Ford Super Duty trucks with 6.7L Powerstroke engine:
- Ford F-250
- Ford F-350
- Ford F-450
- Ford F-550
Common Signs of Fuel Contamination in a 6.7 Powerstroke
- Hard start or no start
- Rough idle or misfire
- Fuel system failure due to contamination
- Loss of fuel pressure
- DEF contamination in the fuel system
If these symptoms are present, a full fuel system repair is strongly recommended.
Installation Notes
- Professional installation recommended
- The fuel system must be completely cleaned and flushed
- Ensure the fuel tank and lines are free of contamination before installation
- Always replace filters and verify fuel quality prior to startup
OEM Cross Reference
- LC3Z-9B246-A
