Description
7.3L 94–03 Powerstroke Stage 2 Beehive Spring Valvetrain Kit
Take your 1994–2003 Ford 7.3L Powerstroke to the next level with the Stage 2 Beehive Spring Valvetrain Kit—a complete performance upgrade for serious builders and enthusiasts. This kit is designed for those seeking more horsepower, higher RPM capability, and uncompromising reliability.

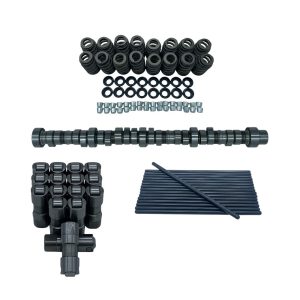

What’s Included:
-
Stage 2 Camshaft
- Engineered for increased efficiency and power
- Cam Specs:
- Duration: 190° Intake / 200° Exhaust
- Valve Lift: .430″ Intake / .438″ Exhaust
- 107° Lobe Center Line
- Delivers optimal valve timing and improved performance
-
Beehive Valve Spring Kit
- Specialized beehive design for higher RPM stability and better valve control
- Reduces valvetrain weight for improved engine response
-
Billet Push Rods
- Heavy-duty 3/8″ .080 wall construction for maximum strength
- Enhances reliability under high-stress, high-RPM conditions
-
16 Heavy-Duty Lifters
- Built for demanding, high-performance environments
- Ensures consistent and reliable operation
Important Install Notes:
- OBS Trucks (1994–1997):
- Requires an electric fuel pump—the camshaft does not have a mechanical fuel pump eccentric lobe.
- Piston-to-Valve Clearance:
- Fly-cut pistons are not required, but always check clearance for safe, optimal performance.
Key Features :
- Complete Stage 2 valvetrain upgrade for 7.3L Powerstroke (1994–2003)
- Increases horsepower, RPM range, and overall engine efficiency
- Durable billet push rods and heavy-duty lifters included
- Advanced beehive valve springs for better control at higher RPMs
- Camshaft specs: 190°/200° duration, .430″/.438″ lift, 107° LCL
- Perfect for engine upgrades, performance builds, and reliability improvements
Maximize your 7.3L Powerstroke’s potential with the Stage 2 Beehive Spring Valvetrain Kit—built for power, reliability, and higher performance.
Professional installation and piston-to-valve clearance checks are recommended for best results.
