Description
6.4L Ford Powerstroke Diesel Stage 1 Ultimate Engine Overhaul / Rebuild Kit
Fits 2007–2010 6.4L Ford Power Stroke Diesel Engines
The 6.4L Powerstroke Stage 1 Ultimate rebuild kit is engineered for street-driven trucks and towing applications that require improved reliability and mild performance gains over stock. This kit focuses on durability, smooth power delivery, and long-term service life while maintaining excellent drivability.
Key Features
O-Ringed Cylinder Heads
-
New, fully assembled, ready-to-install pair
Performance Pistons
-
Eight (8) fly-cut, de-lipped pistons
-
Steel top ring groove
-
Teflon-coated skirts
-
Plasma-coated steel rings
-
Bore sizes available: STD, .010, .020, .030, .040
Bearings & Lifters
-
Clevite rod, main, and cam bearings
-
(16) heavy-duty lifters
-
Cam bearings included
Camshaft
-
Stage 1 billet camshaft
-
Smooth lobe ramp technology
-
Lifetime replacement warranty
Valvetrain
-
80 lb high-rev valve springs installed
-
Billet .050″ shorter 6.4L pushrods
Gasket Set
-
Mahle complete upper and lower gasket set for a leak-free rebuild
Extras
-
Optional Cerakote thermal piston top coating
-
Free T-shirt (select size at checkout)

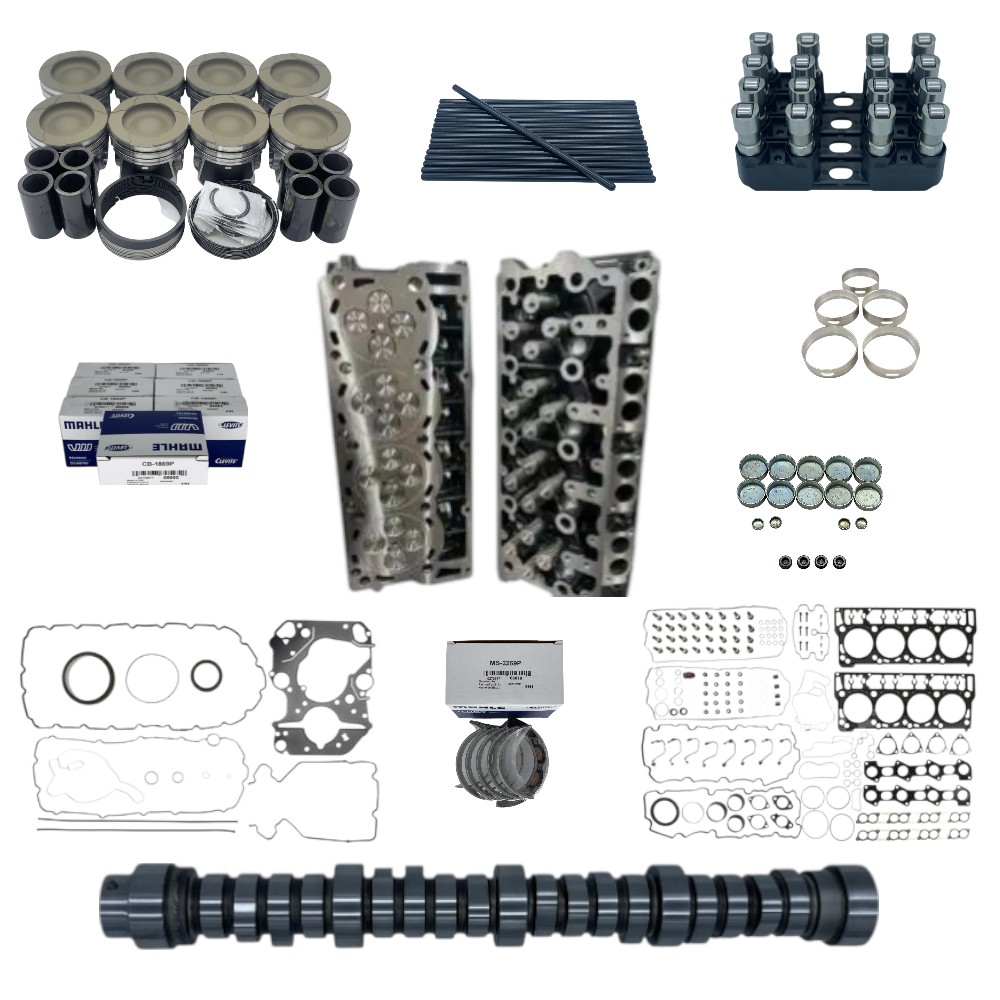

What’s Included
-
(2) O-ringed cylinder heads (assembled)
-
(8) pistons (bore size specified at checkout)
-
(8) wrist pins
-
(16) pin locks
-
(8) piston ring sets
-
Clevite bearings (rod, main, cam)
-
Cam bearings
-
Freeze plug / oil galley plug kit
-
(16) heavy-dutylifters
-
Stage 1 camshaft (lifetime warranty)
-
Billet pushrods
-
Complete gasket & seal set

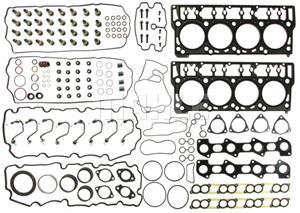

Gasket & Seal Set Includes
Oil pan, oil filter, O-rings, timing cover, oil pump inlet, EGR valve, oil manifold, washers, cylinder head gaskets, crankcase cover, head plugs, EGR cooler, fuel injection grommets, fuel injection O-rings, nozzle washers, intake manifold gaskets, oil cooler seals, thermostat, throttle body, turbo air fittings, turbo oil drain, valve covers, valve cover grommets, water outlet, exhaust manifold, exhaust pipe, crankshaft cover, rear main seal, valve stem seals, and more.
Important Piston Ordering Information
Cylinder bores must be measured by a machine shop prior to ordering to ensure correct piston fitment. Changes to bore size after order processing may result in restocking and shipping fees. Ceramic-coated or machined pistons are non-exchangeable, making accurate measurements critical.
