Description

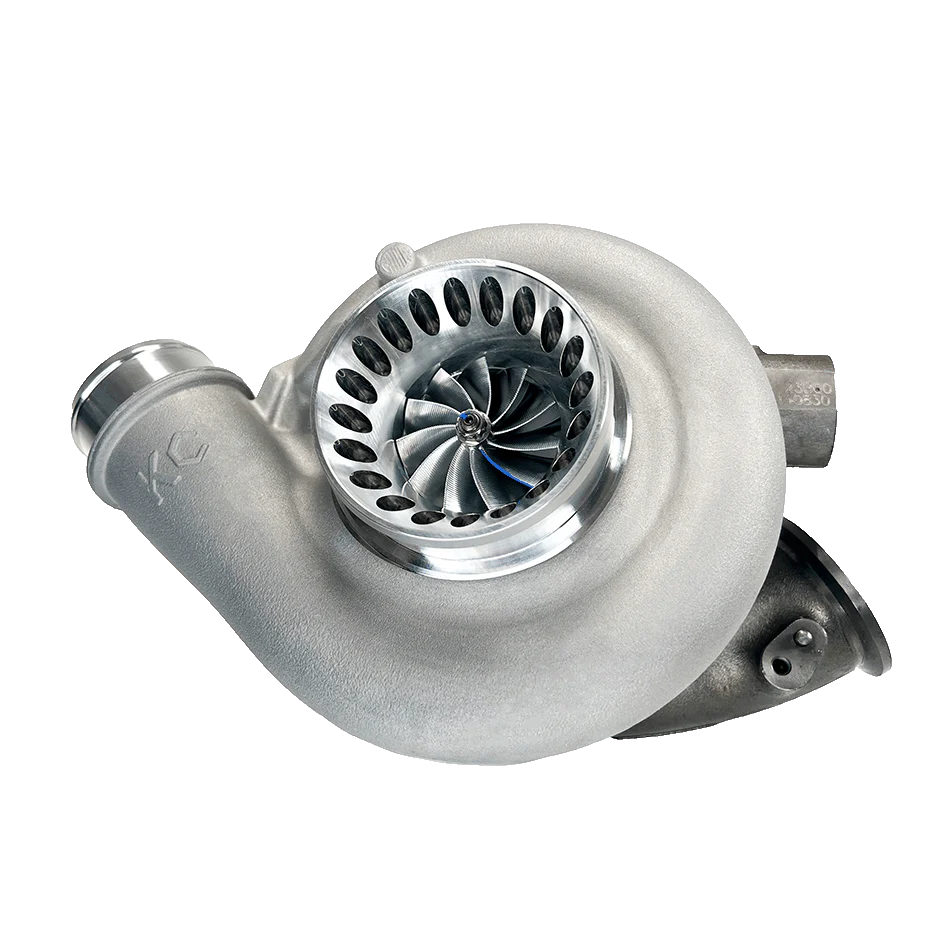

KC Jetfire S3R Gen 2 Dual Ball Bearing Turbo
For 2003–2007 6.0 Powerstroke
Supports up to 190cc / 30% injectors
The KC S3R Gen 2 turbo for 6.0 Powerstroke delivers fast spool, strong power, and reliable performance for 2003–2007 trucks. KC designed this dual ball bearing VGT turbo for drivers who want more power without sacrificing drivability.
KC S3R Gen 2 Turbo Features & Details
-
Gen 2 dual ball bearing cartridge improves spool and long-term durability
-
600+ horsepower capable with supporting modifications
-
Redesigned 64mm single-plane billet compressor wheel with extended tip technology
-
Upgraded .70 A/R race compressor cover with drilled surge ring
-
Redesigned quick-spool turbine wheel for faster response
-
High-flow VGT vanes improve boost control
-
100% drop-in ready, so no modifications are required
-
New VGT solenoid included
-
Brand new turbo – no core required
-
Includes a complete installation kit
KC S3R Gen 2 Turbo Description
The KC Jetfire S3R Gen 2 Dual Ball Bearing Turbo targets drivers who want strong power gains and quick response. It works well on stock injectors and performs even better with larger injector setups up to 190cc. For this reason, it fits both street-driven trucks and performance builds.
Unlike journal-bearing turbos, the dual ball bearing design reduces friction. As a result, the S3R delivers smooth power across the RPM range while maintaining strong low-end torque.
KC S3R Gen 2 Turbo Tuning Recommendation
For best performance and reliability, use quality aftermarket tuning matched to your injector size and turbo setup.
KC S3R Gen 2 Turbo Lead Time & Notes
-
Powder-coated or polished covers may require additional lead time
-
Turbo uses the 2004–2007 mounting style
-
Designed as a direct bolt-on for 2003–2007 6.0 Powerstroke trucks
KC S3R Gen 2 Turbo Exhaust Brake Compatibility
This turbo retains OEM exhaust brake functionality when vehicle calibration supports it. However, some aftermarket exhaust brake systems restrict exhaust flow. Because flapper-style designs create excessive backpressure, we do not recommend using them with this turbo.
