Description

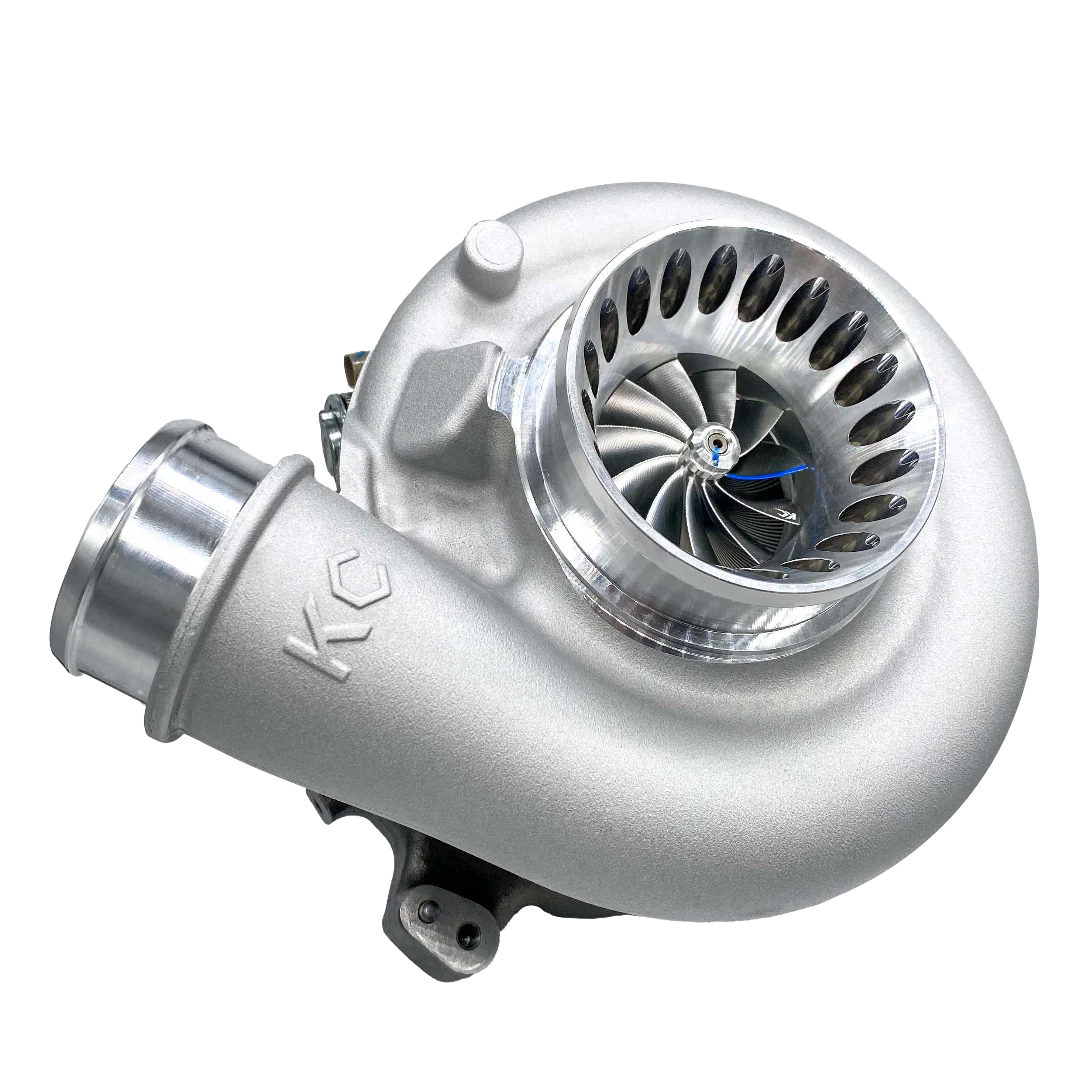

KC Jetfire Stage 1 Turbo – Gen 2
Supports up to 175cc / 30% injectors
The KC Jetfire Stage 1 Gen 2 Turbo delivers fast spool, strong towing power, and smooth drivability for 6.0 Powerstroke owners. It works extremely well with stock injectors, allowing you to push factory fueling without the lag of larger turbochargers.
Because of its efficient design, this turbo provides responsive throttle feel and dependable power. With supporting modifications, it can produce 450–550 horsepower, making it a great choice for daily driving and heavy towing.
Features & Details
-
Supports up to 175cc / 30% injectors
-
Produces 450–550 HP with supporting modifications
-
Features a redesigned Jetfire 61mm billet compressor wheel with extended tip technology
-
Uses a Jetfire 64mm quick-spool turbine wheel
-
Offers optional 9, 10, 11, or 13 blade turbine wheel choices
-
Includes an upgraded 360-degree thrust bearing
-
Installs as a 100% drop-in turbo with no modifications required
-
Comes with a new VGT solenoid
-
Ships brand new with no core required
-
Includes a complete installation kit
Designed for Towing & Daily Driving
This turbo is ideal for drivers who tow heavy and want faster spool. At the same time, it avoids the lag often found in Stage 1.5, PMax, or Stage 2 turbos. As a result, it delivers strong low-end torque and smooth power across the RPM range.
Tuning Recommendation
For best results, we recommend using 50-state legal Edge or SCT tuning. Proper tuning helps maximize performance while maintaining reliability.
Lead Time & Fitment Notes
-
Powder-coated covers may take up to 3 weeks before shipping
-
Polished covers may take 1–2 weeks
-
This turbo uses the 2004–2007 mounting style
-
On 2003 trucks, the third rear mounting bracket must be removed for proper fitment
Exhaust Brake Compatibility
These turbos can retain OEM exhaust brake functionality when the vehicle calibration allows it. However, some aftermarket exhaust brakes may restrict exhaust flow. Because flapper-style systems create excessive backpressure, we do not recommend using them with this turbo.
