Description

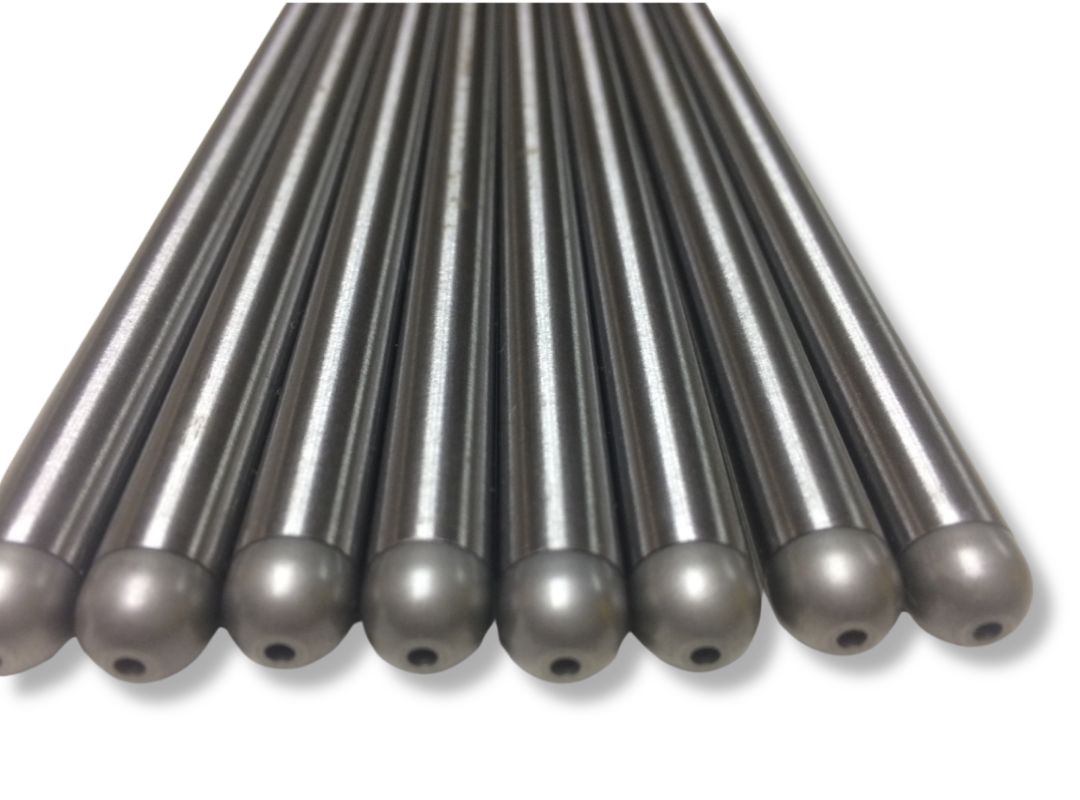

Manton Series 5 Pushrods | 7.3L Powerstroke (1994-2003)
Upgrade your 7.3L Powerstroke valvetrain with Manton’s Series 5 Pushrods, engineered for high-performance diesel applications where factory pushrods simply aren’t up to the task. Built from premium 4130/4135 seamless chromoly tubing and finished with billet steel tip ends, these pushrods are designed to withstand the increased cylinder pressures, RPM, boost, and valve spring loads associated with modified engines.
Series 5 pushrods are manufactured using CNC-machined 86L20 bar stock tips that are core hardened and triple tempered for maximum durability and long-term reliability. With a tensile strength rating of 105,000 PSI, Series 5 pushrods provide a substantial strength increase over standard Series 3 designs, making them ideal for competition, towing, racing, and high-horsepower street applications.
The larger 7/16″ diameter design helps distribute load more evenly across the valve train while minimizing pushrod deflection. This increased rigidity improves valve timing accuracy under demanding conditions and helps maintain consistent valvetrain geometry at high RPM.
Proper pushrod length is critical to maintaining factory rocker arm geometry and preventing premature hydraulic lifter failure. Manton pushrods are trusted throughout the motorsports industry and have been proven in Top Fuel, Sprint Car, Tractor Pulling, Marine, and other extreme-duty applications.
Whether you’re building a high-performance street truck, dedicated competition vehicle, or heavy-duty tow rig, Manton Series 5 Pushrods deliver the strength and reliability your 7.3 Powerstroke demands.
Features & Benefits
- Fits 1994-2003 Ford 7.3L Powerstroke
- Premium 4130/4135 Seamless Chromoly Construction
- CNC Machined Billet Steel Tips
- Core Hardened & Triple Tempered
- 105,000 PSI Tensile Strength
- Increased Valve Train Stability
- Reduces Pushrod Deflection
- Improves Valve Timing Accuracy
- Ideal for High Boost & High RPM Applications
- Recommended for Competition & Performance Engines
- Trusted in Professional Motorsports Applications
Specifications
| Specification | Value |
|---|---|
| Engine Fitment | 1994-2003 Ford 7.3L Powerstroke |
| Series | Series 5 |
| Overall Length | 10.240″ |
| Diameter | 7/16″ |
| Wall Thickness | .120″ |
| Tip Style | 3/8 Ball x 3/8 Ball (Without Oil) |
| Material | 4130/4135 Seamless Chromoly |
| Tip Material | Billet Steel |
| Tensile Strength | 105,000 PSI |
Note:
For heavily modified engines, custom cylinder heads, or altered valvetrain geometry, verifying proper pushrod length is strongly recommended prior to installation. Proper geometry ensures maximum performance, reliability, and hydraulic unit life.
