Description

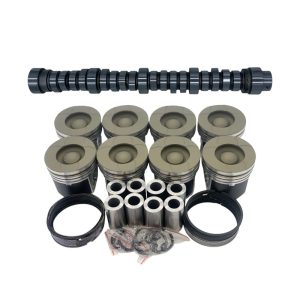

• Pistons Feature:
  • Steel top ring groove, perfect for street strip trucks over the long haul
  • Grafal moly based friction coating on skirts
  • Plasma coated steel top ring, Ductile Iron second ring, 2 piece oil ring
  • Pistons Include:
  • 8 Pistons
  • Teflon Coated Skirts
  • 8 Pins
  • 16 Locks
  • Mahle Piston Rings Are Included
  • When ordering please spec what size piston are needed.
  • (Optional Cerakote thermal management coating, far superior to dated ceramic coatings)
  • Reduced compression options are for cylinder blocks that have been milled more than .006
•  Billet Stage 1 Camshaft
• Drop-In
  Increased Power
  Quicker Turbo Spool-Up
  Lower Exhaust Gas Temperatures
• Camshaft Includes a Life Time Replacement Warranty
  SPECIFICATIONS:
  Duration @ .50: INT. 174 Deg, Cam Lift: 0.254, Valve Lift: 0.355, LSA: 107
  Duration @ .50: EX. 194 Deg, Cam Lift: 0.255, Valve Lift: 0.362, LSA: 107
  Rocker Ratio Int: 1.4-1, Exhaust 1.42-1
• Completely redesigned cam profile to reduce cam and lifter failures, Smooth Lobe Ramp Rate Technology

PLEASE READ:(Piston Agreement) Please take your engine block to the machine shop and have them measure your cylinders so you know what size pistons to order. If you change your piston size after your order has been completed and shipped you will be charged a restocking & shipping fee. Pistons with ceramic coating and/or machined pistons CAN NOT BE EXCHANGED!
