Description

6.0L Ford Powerstroke Diesel Ultimate Overhaul Kit Stage 2

The 6.0L Ford Powerstroke Diesel Ultimate Overhaul Kit Stage 2 is designed for enthusiasts seeking enhanced performance in daily driving and light towing scenarios. This comprehensive kit includes essential engine components such as a cylinder head and valve springs, ensuring optimal functionality and reliability. With the potential to boost horsepower by over 70 HP and torque by more than 150 ft-lbs, this kit facilitates faster turbo spool and reduced exhaust gas temperatures (EGTs). While custom tuning is not mandatory, it is highly recommended to fully realize the benefits of this performance upgrade, especially when paired with single Non VGT turbo kits.

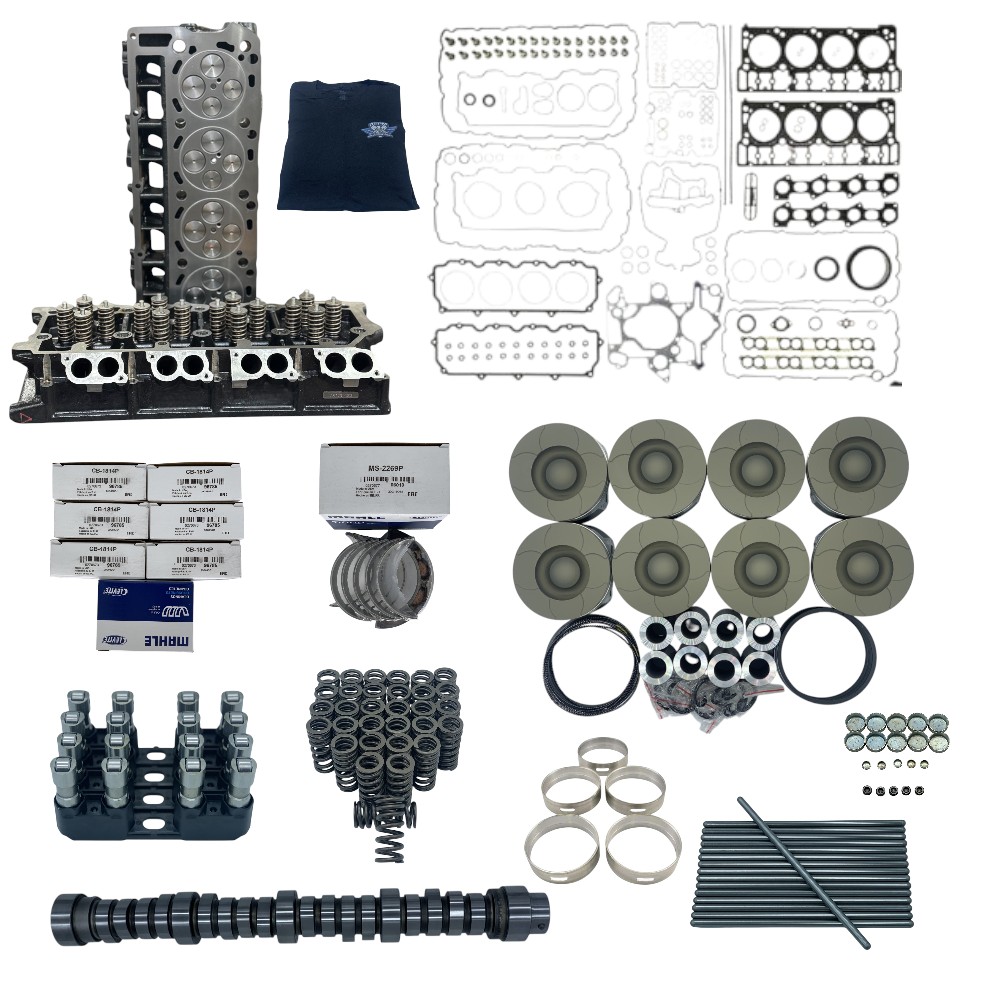

This Kit Includes Our New and improved Oringed Cylinder head set (2) Completely assembled and ready to bolt on.

• 8-New Mahle/UEM pistons .STD- .010-.020-.030-.040 bore sizing available
• Steel top ring groove, perfect for street strip trucks over the long haul
• Grafal moly based friction coating on skirts
• Plasma coated steel top ring, Ductile Iron second ring, 2 piece oil ring
• Suited For Any Use Street/Race
• Pistons Include:
• 8 Pistons
• Teflon Coated Skirts
• 8 Pins
• 16 Locks
• Piston Rings Are Included
• (Optional Cerakote thermal management piston top coating, far superior to dated ceramic coatings)
• When ordering please spec what size piston are needed
• Reduced compression options are for cylinder blocks that have been milled more than .006
• BEARINGS: Cleveite rod & main bearings
• CAM BEARINGS
• Optional Freeze Plug/Oil Galley Plug Kit
• LIFTERS: 16-HD lifter set
• CAMSHAFT Stage 2 custom grind cam 70+HP
• Camshaft Includes a Life Time Replacement Warranty
• Cam Spec’s 180/202 .380/.385 107 Lsa
• Completely redesigned cam profile to reduce cam and lifter failures, Smooth Lobe Ramp Rate Technology
• 100 lb High Rev Valves Springs Installed on cylinder heads
• Billet .050 shorter 6.4 Push-rods
• FREE T-Shirt Included, please select your size before check out.
• Complete Upper & Lower Gasket Set

Gasket & Seals Set Includes: 4-oil pan, 1-oil filter, 1-misc o-ring, 1-timing cover, 1-oil pump inlet, 1-EGR valve, 1-oil manifold, 1-misc washer, 2-cylinder head,1-crank case cover, 4-cylinder head plug, 2- EGR cooler, 1-EGR valve, 16- fuel injection grommet, 8-fuel injection o-ring, 8- injection nozzle washer, 13- intake manifold, 3- oil cooler, 1-oil cooler o-ring, 1-thermostat, 2-throttle body, 3-turbo air fitting, 4-turbo oil drain, 4- valve cover, 20-valve cover grommet, 1-water outer, 2-exhaust manifold, 6-exhaust pipe, 1-crankshaft cover, 1-timing cover, 1-rear main seal, 2-valve covers, 32- valve steam seals.

These kits are not to be used in VT365 International Engines

Proven Power Combinations:

• Stage 2 Master Overhaul Kit
• Stage 2 68 mm VGT Turbo
• 190/75 Injectors
• Thumper 1 High pressure oil pump
• Odawgs S3R Ported Intake
• Regulated Return Fuel system
• And other supporting mods
• We have made over 685 HP / 1400 Ft lbs  with custom tuning on our 2006 F-250 test truck.
• When running a non vgt Turbo we suggest a torque converter replacement with a higher stall of at least 200 rpm over stock rpm.

PLEASE READ:(Piston Agreement)

This product is designed for precision and performance, catering to those who require specific piston sizes for their engine blocks. It is essential to have your cylinders measured at a machine shop prior to ordering to ensure compatibility. Please be aware that any changes to your piston size after the order has been processed will incur restocking and shipping fees. Additionally, pistons featuring ceramic coatings or those that have been machined are non-exchangeable, emphasizing the importance of accurate measurements before purchase.
