6.0L Powerstroke Diesel Mahle Oem Replacement Pistons 224-3503WR

$599.99

Description

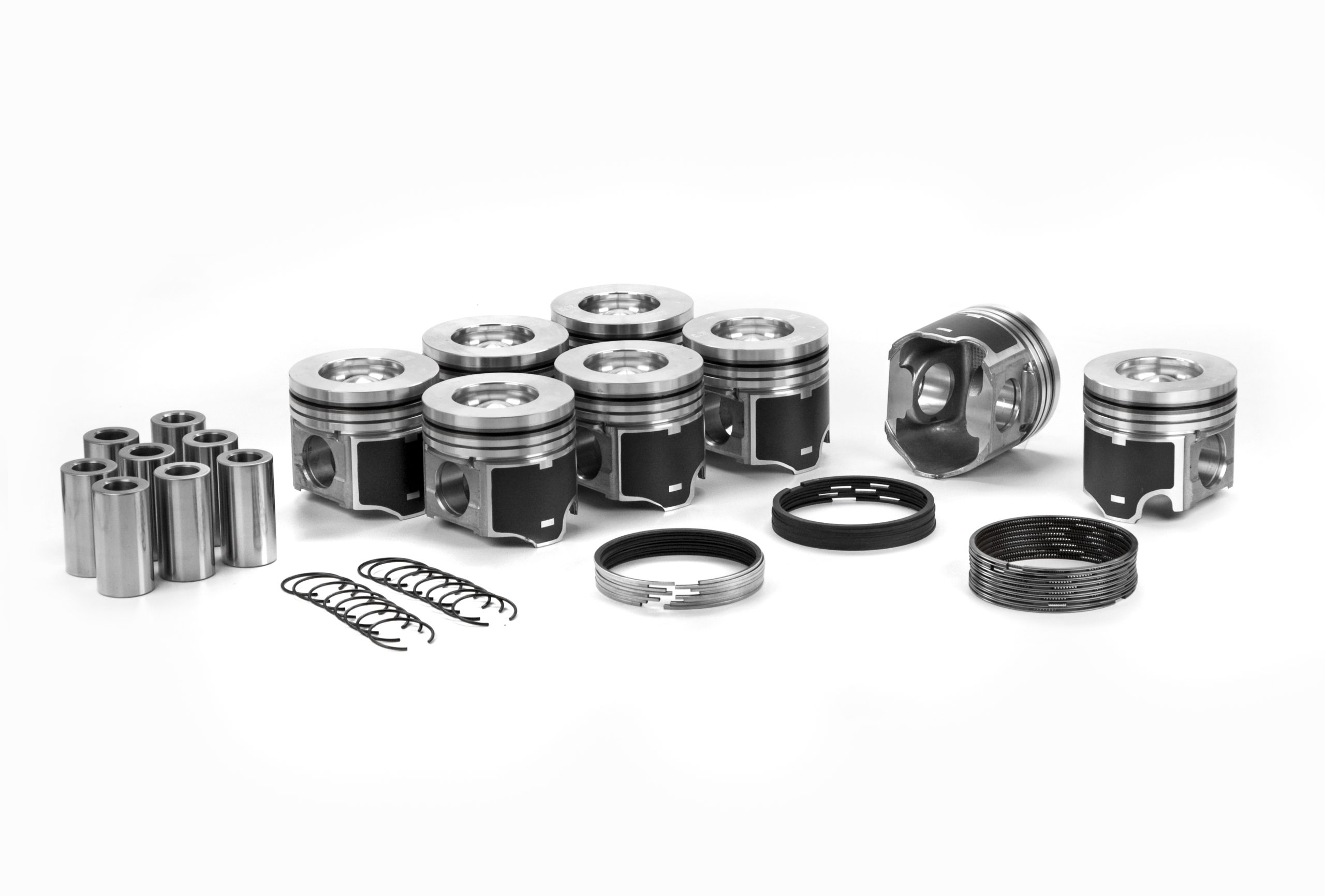

6.0L Powerstroke Diesel Mahle Oem Replacement Pistons

Pistons Feature:

  • Steel top ring groove, perfect for street strip trucks over the long haul
  • Grafal moly based friction coating on skirts
  • Plasma coated steel top ring, Ductile Iron second ring, 2 piece oil ring
  • Pistons Include:
  • 8 Pistons
  • Teflon Coated Skirts
  • 8 Pins
  • 16 Locks
  • Mahle Piston Rings Are Included
  • When ordering please spec what size piston are needed.
  • Mahle Original Piston and Ring Set (8)
    2003-2010 Ford/Navistar Power stroke Diesel V8 6.0L 2003-2010
    Technical Specs:
    Material: Aluminum
    Compression Height: 2.059
    Compression Ring Groove: 2.30 mm
    Second Ring Groove: 2.00 mm
    Oil Ring Groove Width: 3.50 mm
    Full Length: 85.82 mm
    Pin Size: 1.339″ O.D. (34.0 mm)
    Pin Type: Floating; Center Location
    Skirt Type: Coated
    Piston Skirt Clearance: 0.004″
    Year Range and applicable VIN code: TRUCK – 2003-2010
    Flat Top w/ 31.89cc Combustion Chamber, 0.665″ Deep Dish

PLEASE READ:(Piston Agreement) Please take your engine block to the machine shop and have them measure your cylinders so you know what size pistons to order. If you change your piston size after your order has been completed and shipped you will be charged a restocking & shipping fee. Pistons with ceramic coating and/or machined pistons CAN NOT BE EXCHANGED!

Additional information

Weight 24.00 lbs
Dimensions 12 × 24 × 4 in
Piston Size

, , , ,

upc
